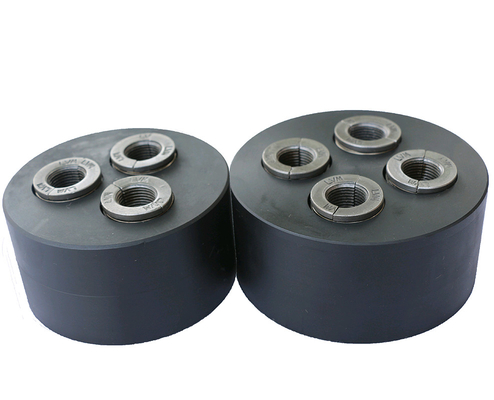

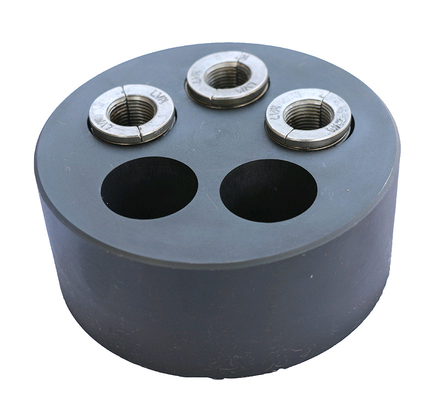

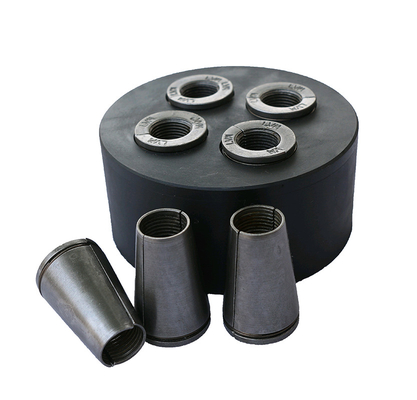

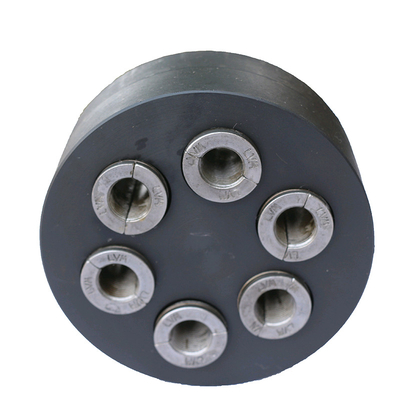

Flat Prestressed Post Tension Anchor Round Anchor Head For Concrete Building

Flat Prestressed Post Tension Anchor Round Anchor Head For Concrete Building

    • Flat Prestressed Post Tension Anchor Round Anchor Head For Concrete Building
    • Flat Prestressed Post Tension Anchor Round Anchor Head For Concrete Building
    • Flat Prestressed Post Tension Anchor Round Anchor Head For Concrete Building
    • Flat Prestressed Post Tension Anchor Round Anchor Head For Concrete Building
  • Flat Prestressed Post Tension Anchor Round Anchor Head For Concrete Building

    Product Details:

    Place of Origin: Ningbo,China
    Brand Name: NC019
    Certification: ISO9001,CE
    Model Number: 019

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pcs
    Price: $1-50
    Packaging Details: Crate
    Delivery Time: 30 days
    Payment Terms: T/T, L/C,
    Supply Ability: 80,000 pcs monthly
    Contact Now
    Detailed Product Description
    Part Name: Round Anchor Head Application: Bridge, Railway, Highway, Building
    PC Strand Diameter: 12.7mm-15.24mm Wedge Type: 2pcs Or 3pcs
    Hardness Of The Anchor Head: ≤HRC33 Material: Steel
    Capacity: 2000mpa

    Round Flat Prestressed Anchor Head for Ring Anchorage in Concrete Building​



     Description



    Anchorage for prestressing work. In post-tensioned concrete, anchorage anchors play a very important role. The effect of pre-stressing depends on the load that the anchors allow, and anchors’ capability decides the security of the post-tensioning.



    GYM series of Post Tension Prestressing Steel Strand Ring Anchorage

    1.Type: Single-hole, Multi-hole; Circular, Flat



    2.Parts: Anchor Ring/Plate, Wedge, Base Plate etc



    3. Have a high anchor efficiency and very good performance



    4. Easy to use,safe and reliable

    GYM series of Post Tension Prestressing Steel Strand Ring Anchorage

    1. M15 applies to 15.2/15.24mm, 15.7mm pc strand.



    2. M13 applies to 12.7mm, 12.5mm & 12.9mm pc strand.



    3. M18 applies to 17.8mm pc strand.



    4. M22 applies to 21.6/21.8mm pc strand.



    5. M11 applies to 10.8mm pc strand.



    6.M10 applies to 9.3mm, 9.53mm pc strand.



    7. M7, M6, M5 apply to 7.0mm, 6.0mm, 5.0mm spiral ribbed pc wire


    Flat Prestressed Post Tension Anchor Round Anchor Head For Concrete Building

    Flat Prestressed Post Tension Anchor Round Anchor Head For Concrete Building

    Flat Prestressed Post Tension Anchor Round Anchor Head For Concrete Building

    Flat Prestressed Post Tension Anchor Round Anchor Head For Concrete Building



    With professional technical team and support from China Academy of Building Research, we have the experience and a proven ability to create solutions that help reduce timescales and deliver exceptional results, meanwhile ensure the safety and stability of construction.



    Quality Control


    1. all the raw materials will be tested before putting into the production.
    Material for Anchor head: 45# steel or 40 Cr
    Material for Wedge: 20 CrMnTi
    2. Crack detection and measurement for all the anchor heads and wedges.
    3. Hardness test for the anchor heads and wedges.
    4. Static load test



    Flat Prestressed Post Tension Anchor Round Anchor Head For Concrete Building



    Our Advantage


    1).We are one of the leading manufacturer and exporter with a history of more than 20 years, enjoying an excellent
    reputation and keep a good relationship with many foreign companies, especially in Japan, Europe, America and
    Southeast Asia.



    2).We have a lot of high precise Machining equipment and high precision testing equipment, our manufactory also
    have a large number of engineers. we can provide the best products and the best service for you.

    FAQ



    Can you supply stocks? Can you deal small orders?
    A: Yes, Small orders can also be accepted.

    Do you provide samples? is it free or extra?
    A: Yes, we can offer samples free of charge. But the express cost should be on buyer's account.

    If found the product with substandard quality. How can you solve it?
    The buyer will be required to submit proof file, picture, video of the said substandard cargo to
    us first. We can also send our engineer to your field to check it directly, if necessary.
