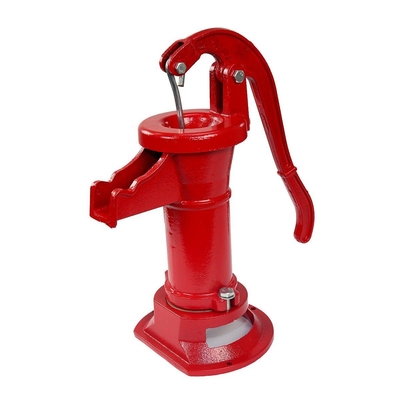

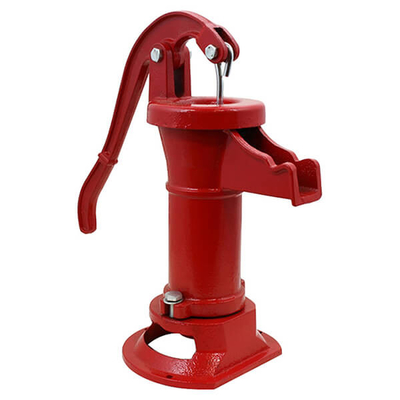

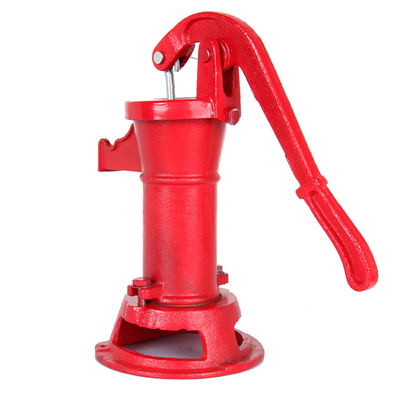

Eco Friendly Cast Iron Pitcher Pump Hand Old Fashioned Water Pump Transparent

Eco Friendly Cast Iron Pitcher Pump Hand Old Fashioned Water Pump Transparent

    • Eco Friendly Cast Iron Pitcher Pump Hand Old Fashioned Water Pump Transparent
    • Eco Friendly Cast Iron Pitcher Pump Hand Old Fashioned Water Pump Transparent
    • Eco Friendly Cast Iron Pitcher Pump Hand Old Fashioned Water Pump Transparent
  • Eco Friendly Cast Iron Pitcher Pump Hand Old Fashioned Water Pump Transparent

    Product Details:

    Place of Origin: Ningbo China
    Brand Name: NC411
    Certification: ISO9001
    Model Number: 411

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Packaging Details: Wooden Case or Customized
    Delivery Time: 25-30 days
    Supply Ability: 60,000 pcs per month
    Contact Now
    Detailed Product Description
    Item: Cast Iron Hand Pump Usage: Farm Garden Agriculture
    Material: Cast Iron, Metal Feature: Eco Friendly
    Surface: Painting Pressure: Low Pressure

    Eco Friendly Cast Iron Pitcher Pump Hand Old Fashioned Water Pump Transparent



    Description



    STEP 1:

    Prepare the water outlet for the water that will be dispensed when you begin pumping. If you are draining water to another area, you will need to connect a hose to the spout, so the flow of the water can be directed. If you are gathering water, simply place a bucket under the spout and fill the bucket by pumping.



    STEP 2:

    Grip the force rod firmly with both hands and lift. The force rod is the long metal handle that moves up and down. As you lift the force rod, a piston is lifted inside the pump. The piston creates suction in the pump and draws water through a check valve and into the pump cylinder



    STEP 3:

    Push the force rod all the way down. As the force rod pushes the piston down to the bottom of the cylinder, air and water are forced through a check valve located in the piston itself. The water that was located below the piston in the cylinder is now resting on top of it



    STEP 4:

    Raise the force rod again. As the piston is raised, it not only fills the cylinder with fresh water, but also forces the water on top of the piston out of the water spout at the same time. Continue this action until you have gathered an ample amount of water



    Application



    1. The hand pumps apply to the pumping of clean water and non-corrosive liquids. They can be used in regions rich in groundwater to pump directly from the ground by inserting a pipe.

    2. Equipped with a PYS15 nozzle and a water-yielding hose, the hand pump can be used in watering small vegetable patches, orchards, and croplands. It can also be used in washing vehicles once the nozzle is removed.

    3. It can be mounted on a hand truck or mobile platform to spray pesticides or farm chemicals on trees and farmlands.

    4. Besides its normal functions of pumping water on ground, the pump can also be used, due to its high lift, as a simplified version of tap water device in places without convenient water supply (e.g. low buildings).

    5. It is suitable for processes such as draining pond water in small brick kilns.

    6.It can be used as a water-supplying fitting part of solar water heaters.



    Specification



    Material solid cast iron
    Size 65*40*15cm
    Weight 7.5KG
    Finish Anti-corrosion painting
    Suction Lift 12-15ft
    Female Thread 1-1/4''
    Mounting hole 3
    Color on request

    Eco Friendly Cast Iron Pitcher Pump Hand Old Fashioned Water Pump Transparent

    Our Service



    We are factory, we can design, produce, develop the hand pump according to your demand!
    We can also produce cookware, lighting pole and other casting product!
    Reply in 24 hours, years producing experience, professional engineer and after-sales service.



    Eco Friendly Cast Iron Pitcher Pump Hand Old Fashioned Water Pump Transparent



    FAQ

    1. How long time for our production?

    Usually production time is 15-25 days,need see which kind of products you buy.

    2. Can you ship it to us?

    We can arrange shipment,can do FOB, CIF, Door to door, depend on you.

    3. How can grantee the quality?

    We first will do a clay model as per your picture, let you check first, then next steps we will send different pictures during the production, we have professional QC check the quality in each step.
