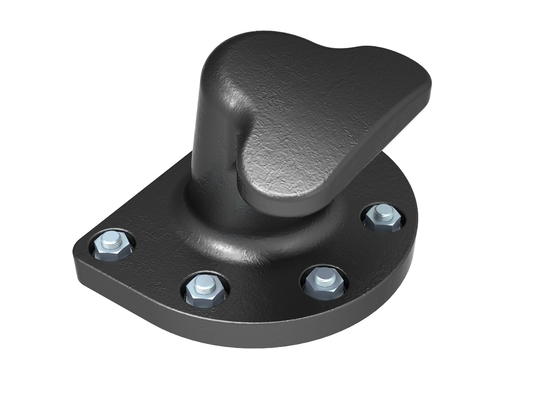

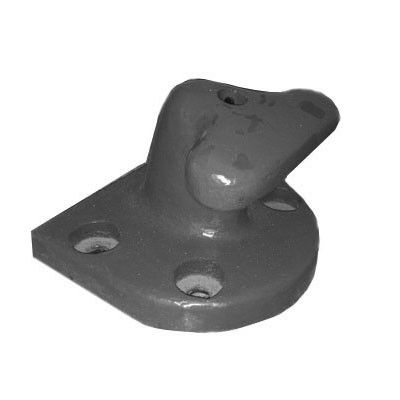

Marine Dock Mooring Cast Iron T Head Bitt Bollard Gray Cast For Ship Boat

Marine Dock Mooring Cast Iron T Head Bitt Bollard Gray Cast For Ship Boat

    • Marine Dock Mooring Cast Iron T Head Bitt Bollard Gray Cast For Ship Boat
    • Marine Dock Mooring Cast Iron T Head Bitt Bollard Gray Cast For Ship Boat
  • Marine Dock Mooring Cast Iron T Head Bitt Bollard Gray Cast For Ship Boat

    Product Details:

    Place of Origin: Ningbo China
    Brand Name: NC291
    Certification: ISO 9001,CE
    Model Number: 291

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PCS
    Price: US1-USD100
    Packaging Details: Wooden Case
    Delivery Time: 25-30 days
    Supply Ability: 120,000 pcs per month
    Contact Now
    Detailed Product Description
    Part Name: T-Head Bitt Bollard Material: Ductile Cast Iron,gray Cast
    Application: Ports/docks Type: J Type, T-head, S Type
    Color: White, Black, Red Surface Finish: Polished, Galvanized Or Bitumen Painted
    Size: As Per Drawing

    Marine Dock Mooring Cast Iron T Head Bitt Bollard Gray Cast For Ship Boat



    Application



    T-Head Bollard is one of the most common bollard for jetty, quay and wharf, it can handle higher line load angles than single bitt and kidney shaped bollards. It is used in various shipyards, docks and marine applications all over the America and Europe seaboards.



    We also make other types of marine security bollards: single bitt bollard, double bitt bollard, staghorn shaped bollard, R type bollard, kidney shaped bollard, other standard bollards. Customized products according to customer’s drawings are allowed as well. Please send us emails if you want to know more details.



    Product Details



    Material: Cast Iron, Cast Steel or Ductile Iron (Spheroidal Graphite) available



    Mounting Hardware: Galvanized Grade 8.8 bolts, nuts and washers or Stainless Steel available



    Surface and Paint: Epoxy coating, anti-corrosion;



    Bollard Capacity: 10 to 200 tonnes;



    Recommended Line Angle: 0° to 50°



    Allowable Line Angle: 160°



    Bolts Quantity: 4 to 7;



    Certificate: CCS, ABS, BV, GL etc.



    Can be customized.

    Marine Dock Mooring Cast Iron T Head Bitt Bollard Gray Cast For Ship Boat



    Bolts Qty
    Capacity(Tonnes)
    Dimensions(mm)
    A
    B
    C
    D
    E
    F
    G
    H
    4
    10
    200
    216
    236
    160
    106
    218
    120
    32
    4
    25
    245
    350
    305
    250
    150
    285
    127
    45
    5
    30
    290
    430
    410
    360
    190
    360
    150
    45
    5
    50
    365
    550
    540
    430
    250
    475
    200
    50
    5
    75
    430
    650
    650
    520
    300
    570
    235
    70
    5
    80
    415
    518
    540
    430
    250
    430
    245
    55
    7
    120
    490
    678
    642
    600
    330
    584
    290
    65
    7
    200
    520
    950
    780
    680
    360
    670
    306
    80
    7
    200
    600
    950
    780
    680
    360
    670
    386
    80
    8
    200
    656
    1020
    930
    800
    460
    830
    349
    100



    Factory Introduction

    Supply various anchors, castings and other marine equipment.

    Marine products are anchors, yacht anchors, stainless steel anchors, offshore anchors, marine cultivation anchors, buoys, chocks, rollers, bollards, anchor chains, marine outfitting, marine cables and so on.
    Marine Dock Mooring Cast Iron T Head Bitt Bollard Gray Cast For Ship Boat

    Advantages of our factory

    1. The standard and non-standard product are all can be customized for you.



    2. Welcome you come to visit our factory and show you our excellent quality.



    3. Reliable quality and strict quality control team make you never worry about quality issues.



    4. One stop source, all related products requirement can source from us.



    5. Our company have strict standard to the surface treatment. The surface are smooth and bright. And we will do the best packing that we can do for you.



    Our Service



    1. Quality Assurance

    All our products are strictly manufactured in accordance with the production standards. Before being issued the product quality certification, all products are inspected and accepted by the technical inspection department of the manufacturing plant.

    2. Product Customization Service

    Our company can supply both standard and non-standard products to meet your various needs. We can customized products according to your drawings.

    3. Providing Classification Society Certificates

    We can supply various certificates of Classification Societies: CCS, ABS, BV, DNV, GL, LR, NK, KR, RINA, RS etc.

    4. Excellent Pre-sale and After-sale Service

    Our salesmen are adhering to the trading principles of being honest and trustworthy, fair and equitable to provide excellent and satisfactory service for our customers.
