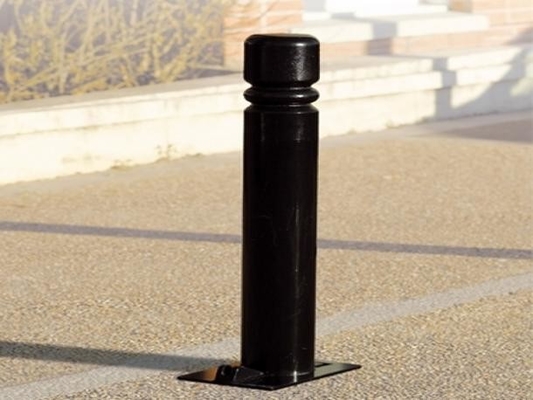

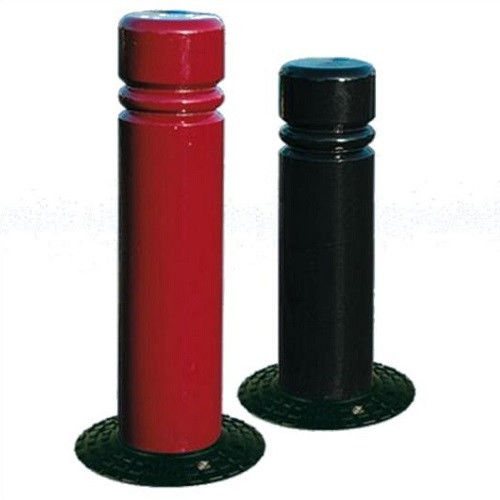

Hydraulic Automatic Retractable Cast Iron Bollards For Parking Stop Barrier

Hydraulic Automatic Retractable Cast Iron Bollards For Parking Stop Barrier

    • Hydraulic Automatic Retractable Cast Iron Bollards For Parking Stop Barrier
    • Hydraulic Automatic Retractable Cast Iron Bollards For Parking Stop Barrier
  • Hydraulic Automatic Retractable Cast Iron Bollards For Parking Stop Barrier

    Product Details:

    Place of Origin: Ningbo,China
    Brand Name: NC198
    Certification: ISO 9001,CE
    Model Number: 198

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Packaging Details: Customized
    Delivery Time: 25-30 days
    Supply Ability: 100,000 pcs per month
    Contact Now
    Detailed Product Description
    Part Name: Retractable Cast Iron Bollards Material: Cast Iron
    Diameter: 168mm(6.61'') Height: 900mm(35.43'')
    Thickness: 5mm(0.197'') Surface Finish: Sand Blasting Or Polished
    Voltage: 220 Vac 50/60Hz

    Hydraulic Automatic Retractable Cast Iron Bollards For Parking Stop Barrier



    Application



    Hydraulic automatic bollard intend to prevent vehicles unauthorized access to secured areas and keep high level of anti-terrorism protection.

    Hydraulic automatic bollard mainly consists of oil pump unit and steel frame construction. It uses oil pressure as dynamic to realize the rise / fall of bollard. As a moving device, it is usually at vehicle entrance / exit. It rises to block the vehicle and falls to authorize free passing.



    Commands are sent by remote control or other control system to make bollard automatically back to ground level to realize barrier-free passing. This is suitable for custom, port, wharf, high-class estate, pedestrian street, government building, prison, airport, military base and other places in need of control.



    It is environmental-friendly product for access control. For short, it is a high-security product with high-speed and high-impact performance.



    About Us



    We are a professional manufacturer of Outdoor furniture, such as Park benches, Trash receptacles, Outdoor table chairs,Flower plant pots, Bike racks, Bollards etc other street furniture.

    We have been in this line for more than 25 years. Based on our experience, with our reasonable price, high quality and considerate service. Our products enjoy the high reputation in our market.



    Feature



    1. Durable, Overload, Operate Smoothly, Low Noise.

    2. Micro control technology makes bollards work stable and reliable.

    3. Compatible with road barrier, Turnstiles and other access system control to achieve automatic control.

    4. Reflective band and LED light ensure safety at night, only need weak light to be clearly visible at night.

    5. Remote control system realize wireless control up & down within 30 meters range.



    Specification



    Diameter
    168mm(6.61'')
    Height
    900mm(35.43'')
    Thickness
    5mm(0.197'')
    Weight
    150Kg(330.69lb)
    Surface Treatment
    Brushed & Polished
    Reflective Adhesive Strip
    50mm(1.97'')
    Rising and Lowering Speed
    2s to 3s
    Voltage
    220 Vac 50/60Hz
    Impact Resistance
    30.000 J
    Breakout Resistance
    150.000 J
    Protection Class
    IP67
    Operating Temperature
    -40 °C +70 °C(-104°F-158°F)
    Warranty
    12 months


    Hydraulic Automatic Retractable Cast Iron Bollards For Parking Stop Barrier

    Hydraulic Automatic Retractable Cast Iron Bollards For Parking Stop Barrier



    Quality Control



    Before the order can be confirmed finally,we would strictly check the material, color, dimension of the sample step by step.

    Inspection was will be report after each step during the production.

    QC team work together with salesmen, to make sure everything is running the the right way, and make sure the order being finished before the time required.

    We would try our best to help clients solve problems when they occurred.

    FAQ

    Q: How can I get the quotation?

    A: Please send us information for quote: drawing, material, weight, quantity and request.

    Q: If we don’t have drawing, can you make drawing for me?

    A: Yes, we make the drawing of your sample and duplicate the sample.

    Q: When can I get the sample?

    A: Sample: 25-30 days after you start to make mold. The accurate time depends on your product.

    Q: What is your main order time?

    A: Order time: 35-40 days after the payment. The accurate time depends on your product.

    Q: What is your payment method?

    A: Tooling: 100% TT advanced.

    Main order: 50% deposit, balance 50% to be paid before shipment.
