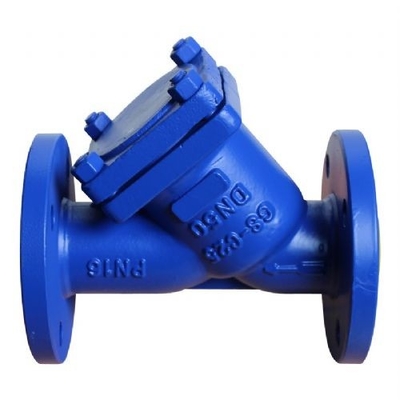

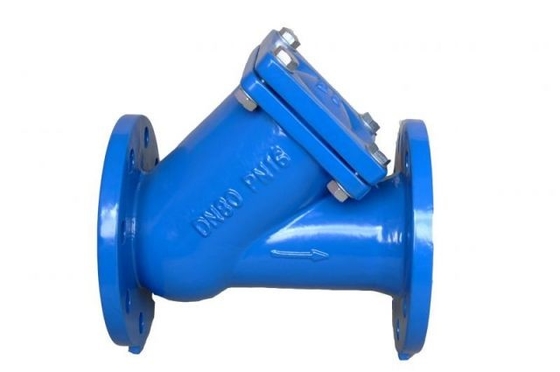

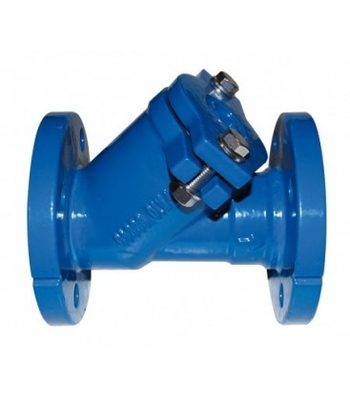

GGG50 DIN Standard Water Y Type Strainer Cast Flanged End Ductile Iron PN16

GGG50 DIN Standard Water Y Type Strainer Cast Flanged End Ductile Iron PN16

    • GGG50 DIN Standard Water Y Type Strainer Cast Flanged End Ductile Iron  PN16
    • GGG50 DIN Standard Water Y Type Strainer Cast Flanged End Ductile Iron  PN16
    • GGG50 DIN Standard Water Y Type Strainer Cast Flanged End Ductile Iron  PN16
  • GGG50 DIN Standard Water Y Type Strainer Cast Flanged End Ductile Iron  PN16

    Product Details:

    Place of Origin: Ningbo China
    Brand Name: NC152
    Certification: ISO 9001
    Model Number: 152

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Packaging Details: Wooden Case
    Delivery Time: 25 days
    Payment Terms: L/C, T/T
    Supply Ability: 50,000 pcs per month
    Contact Now
    Detailed Product Description
    Item Name: Y Type Strainer Material: Ductile Iron
    Process: Iron Casting Application: Water System
    Port Size: DN15mm-650mm OEM: Available

    GGG50 DIN Standard Water Y Type Strainer Cast Flanged End Ductile Iron PN16



    Description



    Y type filter and dirt separator, filter, valve, is indispensable to medium pipeline system, a device which is used to filter medium mechanical impurity in the sewage can be of rust, sand, and a small amount of solid particles in the liquid filter to protect equipment such as piping accessories from wear and congestion, can the normal work of the protection device, when the fluid is placed into a certain size of filter cartridge, the impurity is blocked, and clean the filtrate by filter outlet, when need to wash, just remove the removable cartridge, after processing to reload the can, therefore, is very convenient in operation and maintenance.



    Application



    1. Weak corrosive media in chemical industry, such as water, ammonia, oil, etc.
    2. Corrosive media in the chemical industry: caustic soda, soda ash, sulfuric acid, carbon acid, ethylene acid, pectic acid, etc.
    3. Low temperature media in refrigeration, such as methane liquid, ammonia liquid, liquid oxygen and various freezing medium
    4. Hygiene required media in light industry foodstuff, pharmacy industries, such as beer, drink, dairy products and syrup medical articles, etc.



    Our Main Products



    1. ANSI gate valve, DIN gate valve, GOST gate valve, Soft sealing gate valve, Knife gate valve, Flat gate valve
    2. Wafer type butterfly valve, flange type butterfly valve, single eccentric butterfly valve, double eccentric butterfly valve, Three eccentric butterfly valve
    3. Check valve, lift check valve, swing check valve, wafer type check valve, spring check valve
    4. Ball valve, tee ball valve, 4 way ball valve, welding ball valve
    5. Strainer, filter, Y type strainer



    Specification



    1 Size: DN25~DN300mm
    2 Standard: DIN, BS, ANSI
    3 Material: Ductile iron, cast iron
    4 Working Pressure: PN6, PN10, PN16
    5 Design: Face to face is according to BS5163: 1986
    Flange drilled is according to BS4504
    6 Media: Water, gas, oil, etc
    7 Coating: Fusion bonded epoxy power coating
    8 Brand Name: MDS
    9 Sample: For free, but you need to bear their own delivery costs
    10 Certificate: ISO, BV, SGS
    11 Payment Term: T / T, L / C
    12 Package: Plywood boxes outside or as per customer’s requirement.
    13 Delivery Time: 30 days after received the advance payment.



    GGG50 DIN Standard Water Y Type Strainer Cast Flanged End Ductile Iron  PN16

    DIN CAST IRON Y STRAINER DIMENSIONS(mm)
    DN L D D1 D2 b Z-∮d f H KG
    25 160 115 85 68 16 4-14 2 100 4
    32 180 140 100 78 18 4-18 2 118 6
    MATERIALS 40 200 150 110 88 18 4-18 3 128 7
    ITEM PARTS NAME MATERIAL 50 230 165 125 102 20 4-18 3 147 11.8
    1 BODY CAST IRON 65 290 185 145 122 20 4-18 3 168 16.45
    2 SCREEN STAINLESS STEEL 80 310 200 160 138 22 8-18 3 195 19
    3 GASKET GRAPHITE 100 350 220 180 158 24 8-18 3 224 24.9
    4 BONNET CAST IRON 125 400 250 210 188 26 8-18 3 255 35.6
    5 PLUG GGG40 GRAPHITE 150 480 285 240 212 26 8-23 3 300 51.9
    6 GASKET GRAPHITE 200 600 340 295 268 30 12-23 3 370 92.3
    7 BOLT CARBON STEEL 250 730 405 355 320 32 12-27 3 435 142
    8 GASKET CARBON STEEL 300 850 460 410 378 32 12-27 4 502 210





    Any related products we can make



    GGG50 DIN Standard Water Y Type Strainer Cast Flanged End Ductile Iron  PN16



    After-sales service

    Before shipment, products will be strictly inspection on our factory QC Process System. Just in case, there is abnormal. Please contact us at first time, Customer Complaint handling procedure will be boot at once. Implementation of the scheme will be come out within 48 hours. We will negotiate with customer to find a reasonable way to resolve and compensate.
