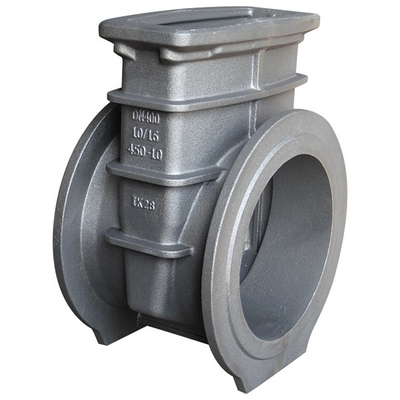

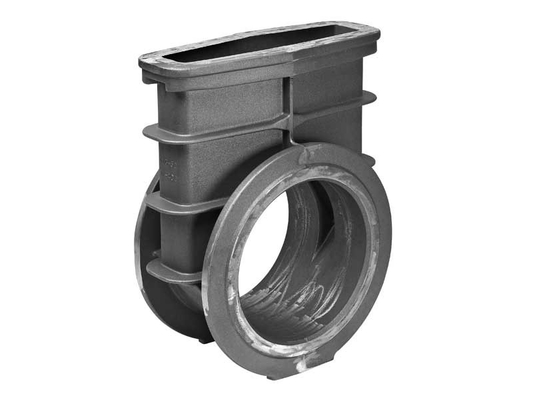

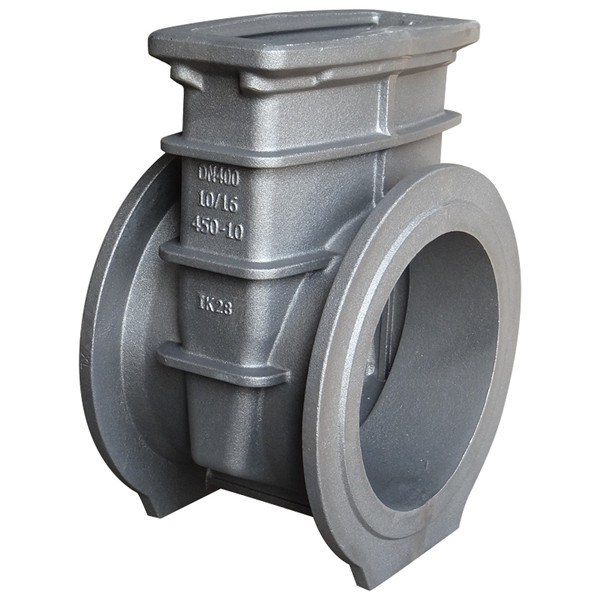

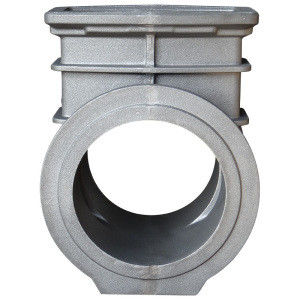

Industrial Parts Flanged Gate Valve Body Casting Flow Controlling DIN Pn16

Industrial Parts Flanged Gate Valve Body Casting Flow Controlling DIN Pn16

    • Industrial Parts Flanged Gate Valve Body Casting Flow Controlling DIN Pn16
    • Industrial Parts Flanged Gate Valve Body Casting Flow Controlling DIN Pn16
    • Industrial Parts Flanged Gate Valve Body Casting Flow Controlling DIN Pn16
  • Industrial Parts Flanged Gate Valve Body Casting Flow Controlling DIN Pn16

    Product Details:

    Place of Origin: Ningbo China
    Brand Name: NC140
    Certification: ISO 9001
    Model Number: 140

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Packaging Details: Wooden Case, Plywood, Crate, Pallet
    Delivery Time: 25 days
    Payment Terms: T/T, L/C
    Supply Ability: 100,000 per month
    Contact Now
    Detailed Product Description
    Part Name: Gate Valve Body Material: Ductile Iron
    Casting Method: Thermal Gravity Casting Surface Roughness:: Ra0.4
    Sand Core Type: Resin Sand Core Usage: Regulation, Flow Control, Drinking Water
    Application: Industrial Usage, Water Industrial Usage Specification: DN350-DN1200

    Industrial Parts Flanged Gate Valve Body Casting Flow Controlling DIN Pn16



    Sunrise Foundry is a professional Metal Foundry, located in Ningbo. We have been producing Grey Iron, Ductile Iron Castings and and any other precision castings for more than 25 years. Products include valves, valve bodies, valve parts for gate valve, check valve, butterfly valve. Our technical team has more than 30 years working experience on cast iron area.


    We can offer Casting and sand casting parts according to your requirement:

    Cast Iron Material: Grey Iron / Gray Iron, Ductile Iron.

    Process: Gray Iron Castings, Ductile Iron Castings, Sand Casting, Automatic Molding, Machine Molding, Shell Molding, Green Sand Casting, Resin Sand Casting, Medium Frequency Electric Furnace

    Weight range: 1KG-2TON

    Application: Industrial parts, Machinery parts, hardware, construction parts, valve / valve parts, train, craft, door handle, hinge, hydraulic pressure, construction, agricultural machinery.

    Surface treatment, painting, zinc plating, machining center, powder coating, Shot Blast, etc.

    ISO9001 SGS

    OEM service available



    Casting Material



    Item Description Material Technical Process
    1

    Ductile iron

    castings

    ASTM A65-45-12

    DIN-GGG40

    JIS-FCD40

    BS-Gr420-12

    Green sand moulding

    Resin sand moulding

    Lost foam cast

    Shell core cast

    Electric furnace melting

    2

    Grey iron

    castings

    ASTM A126-Class B

    DIN-GG25

    JIS-FC25

    BS-Grade220

    NF-FGL250

    Green sand moulding

    Resin sand moulding

    Lost foam cast

    Shell core cast

    Electric furnace smelting

    3

    Carbon steel

    castings

    ASTM A216-Gr. WCB



    Soluble glass sand moulding

    Resin sand moulding

    Lost wax casting

    (Investment casting)

    Lost foam cast

    Shell core cast

    Electric furnace smelting

    4

    Stainless steel

    castings

    ASTM A351 CF-8M, CF-8,

    ASTM A351 CF-3M, CF-3

    ASTM A890-4A, A890-5A



    Soluble glass sand moulding

    Resin-sand moulding

    Lost wax casting

    (Investment casting)





    Specification



    Gate Valve Design Standard DIN3352 / EN1171 F4 F5 or BS5163
    Test Standards: API598 and EN 12266
    Rising stem or non rising stem
    Pressure: PN10, PN16 and PN25
    Body materials: Ductile iron, GG25, GGG40
    Surface Finish: Sand blasting or epoxy powder, coated inside and outside minimum 250μ Or Epoxy Paint
    Size Scope: DN350-DN1200 14"--48"





    Industrial Parts Flanged Gate Valve Body Casting Flow Controlling DIN Pn16



    Quality Control

    1. 100% Inspection before shipment, send you the cargo pictures with details include marking, packing, testing to you together with a Test Report.

    2. 18 months quality Guarantee.

    3. Any third party Inspection is acceptable.





    Our Advantages


    1. Newly developed facilities ensure high and stable quality.

    2. Experienced technology.

    3. Excellent after-sale service to satisfy customers.

    4. Sufficient capacity ensures prompt delivery.

    5. Continuous quality improvement and new designs development.

    6. Reasonable and stable price.

    7. Meets different countries standards, such as ANSI, DIN, BS etc.

    8. We are applying for LR,DNV, Foundry Works Approval.

    Our main market: Eastern Europe, Western Europe, North America, Mid Africa, Central America, Australia
