Multi Holes Post Tension Anchor Round Prestressed Strand Coupler Connector

Multi Holes Post Tension Anchor Round Prestressed Strand Coupler Connector

    • Multi Holes Post Tension Anchor Round Prestressed Strand Coupler Connector
    • Multi Holes Post Tension Anchor Round Prestressed Strand Coupler Connector
    • Multi Holes Post Tension Anchor Round Prestressed Strand Coupler Connector
  • Multi Holes Post Tension Anchor Round Prestressed Strand Coupler Connector

    Product Details:

    Place of Origin: Ningbo China
    Brand Name: NC120
    Certification: ISO 9001
    Model Number: 120

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Packaging Details: Wooden Case
    Delivery Time: 30 days
    Supply Ability: 60,000 pcs per month
    Contact Now
    Detailed Product Description
    Type: Adapter Application: PC Strand, Bridge Construction
    Material: Steel Diameter: 245mm
    Hardness: 20-35HRC Strength: 1860MPa

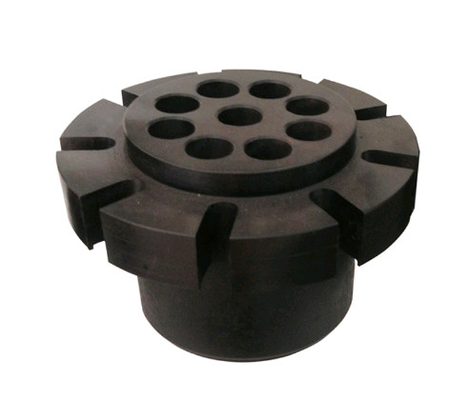

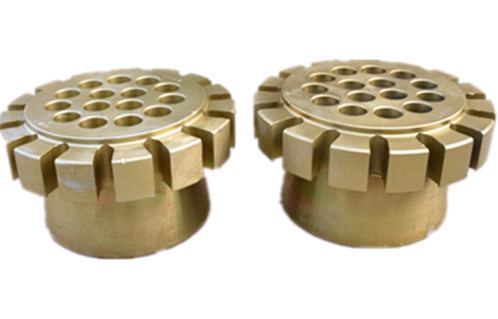

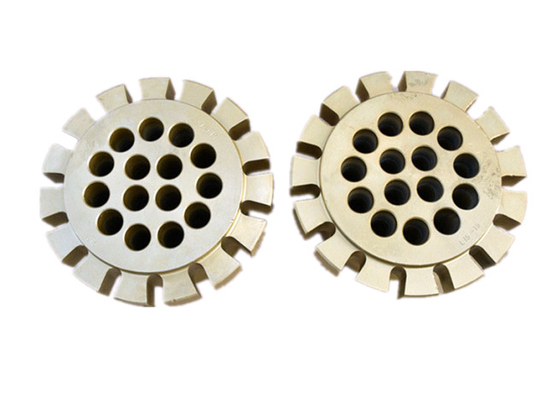

    Multi Holes Post Tension Anchor Round Prestressed Strand Coupler Connector



    Description


    Strand Coupler

    1. LQM strand coupler include LQM 15L and LQM 13L periphery hanging connectors. They are mainly suitable for the connection long of dia.0.5" and 0.6" PC strand bundles, and used in the post-tensioning continuous beam structure.

    2. LQM strand coupler periphery hanging connectors consist of coupler, wedge, squeezing socket, anchor bearing plate, spiral reinforcements, restraining ring, protective sleeve, metal corrugated duct, and PC tendon etc..

    3.This strand coupler performance is better and it is suitable for the connection of various tonnage PC strand bundle.

    Product Details

    Type Strand No.

    Anchor Fitting

    A×B×ΦC

    Corrugated Pipe Inner Dia

    ΦE×F

    Anchor Ring

    Spiral Bars Anchor Fitting Tensioning Jack Type
    ΦG×ΦH×1 Ribs Holes Distance Holes Dia.
    YJM15-1 1 80×80×Φ12   Φ45×45 Φ70×Φ6×30 4

    YDC260Q

    (YDC240Q)

    YJM15-2 2 130×85×Φ71.5 Φ50 Φ88×48 Φ100×8Φ×40 4 88 M12
    YJM15-3 3 130×85×Φ71.5 Φ50 Φ88×50 Φ100×8Φ×40 4 88 M12 YCW100B
    YJM15-4 4 140×90×Φ80 Φ55 Φ102×50 Φ130×10Φ×40 4 100 M12 YCW100B
    YJM15-5 5 150×110×Φ89 Φ55 Φ108×50 Φ140×10Φ×50 4 120 M12

    YCW100B

    (YCW150B)

    YJM15-6 6 180×120×Φ102 Φ70 Φ126×50 Φ170×Φ12×50 4 140 M12 YCW100B
    YJM15-7 7 180×120×Φ102 Φ70 Φ126×50 Φ170×Φ12×50 4 140 M12

    YCW150B

    (YCW250B)

    YJM15-8 8 200×140×Φ118 Φ80 Φ136×50 Φ180×Φ14×50 5 170 M12 YCW250B
    YJM15-9 9 210×160×Φ118 Φ80 Φ147×50 Φ200×Φ14×50 5 170 M12 YCW250B
    YJM15-10 10 240×190×Φ136 Φ90 Φ158×50 Φ230×Φ14×60 5 190 M12 YCW250B
    YJM15-11 11 240×190×Φ136 Φ90 Φ158×50 Φ230×Φ14×60 5 190 M12 YCW250B
    YJM15-12 12 240×190×Φ136 Φ90 Φ166×50 Φ230×Φ14×60 5 190 M12 YCW250B
    YJM15-13 13 240×190×Φ136 Φ90 Φ166×56 Φ230×Φ14×60 5 190 M12 YCW350B
    YJM15-14 14 240×200×Φ148 Φ90 Φ177×60 Φ230×Φ16×60 5 190 M12 YCW350B
    YJM15-15 15 240×200×Φ153 Φ90 Φ178×60 Φ230×Φ14×60 5 190 M12 YCW350B
    YJM15-16 16 260×220×Φ159 Φ90 Φ195×60 Φ230×Φ16×60 5 200 M12

    YCW350B

    (YCW400B)

    YJM15-17 17 260×220×Φ159 Φ90 Φ195×65 Φ230×Φ16×60 5 200 M12

    YCW350B

    (YCW400B)

    YJM15-18 18 270×220×Φ176 Φ100 Φ205×65 Φ230×Φ16×60 5 200 M12 YCW400B
    YJM15-19 19 270×220×Φ176 Φ100 Φ205×65 Φ250×Φ16×60 6 200 M12

    YCW400B

    (YCW500A)

    YJM15-21/22 21/22 320×260×Φ210 Φ120 Φ235×72 Φ280×Φ18×70 6 240 M12 YCW500A
    YJM15-25/26/27 25/26/27 350×295×Φ222 Φ130 Φ256×100 Φ300×Φ22×70 6 260 M12 YCW650A
    YJM15-30/31 30/31 390×346×Φ222 Φ130 Φ275×100 Φ420×Φ18×70 7 290 M12 YCW650A
    YJM15-34/37 34/37 465×390×Φ246 Φ140 Φ305×120 Φ450×Φ20×70 8 350 M12 YCW900A
    YJM15-43/44 43/44 500×450×Φ286 Φ160 Φ336×130 Φ500×Φ50×80 8 376 M12 YCW900A
    YJM15-54/55 54/55 540×510×Φ295 Φ160 Φ345×160 Φ230×Φ16×60 8 400 M12

    YCW1200A



    Multi Holes Post Tension Anchor Round Prestressed Strand Coupler Connector

    Multi Holes Post Tension Anchor Round Prestressed Strand Coupler Connector





    Multi Holes Post Tension Anchor Round Prestressed Strand Coupler Connector



    Package



    We will use standard export package with wooden case. We can also packed as per customers' requirements.

    Payment



    We accept T/T, L/C, 40% as deposit and balance payment before delivery.
