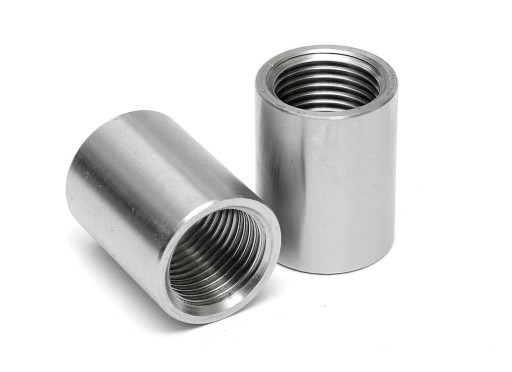

Thread Rebar Splice Coupling Steel Reinforced Thread Bar Coupler for Rebar Connection

Thread Rebar Splice Coupling Steel Reinforced Thread Bar Coupler for Rebar Connection

    • Thread Rebar Splice Coupling Steel Reinforced Thread Bar Coupler for Rebar Connection
    • Thread Rebar Splice Coupling Steel Reinforced Thread Bar Coupler for Rebar Connection
    • Thread Rebar Splice Coupling Steel Reinforced Thread Bar Coupler for Rebar Connection
  • Thread Rebar Splice Coupling Steel Reinforced Thread Bar Coupler for Rebar Connection

    Product Details:

    Place of Origin: Ningbo China
    Brand Name: NC141
    Certification: ISO 9001
    Model Number: 141

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Packaging Details: Customized
    Delivery Time: 30 days
    Payment Terms: T/T, L/C
    Contact Now
    Detailed Product Description
    Material: Carbon Steel Technics: Casting Or Forged
    Type: Coupling Thread Pitch: 2.0mm,2.5mm,3.0mm
    Rebar Diameter: 12mm-50mm Shape: Circle

    Thread Rebar Splice Coupling Steel Reinforced Thread Bar Coupler for Rebar Connection​



    Usage

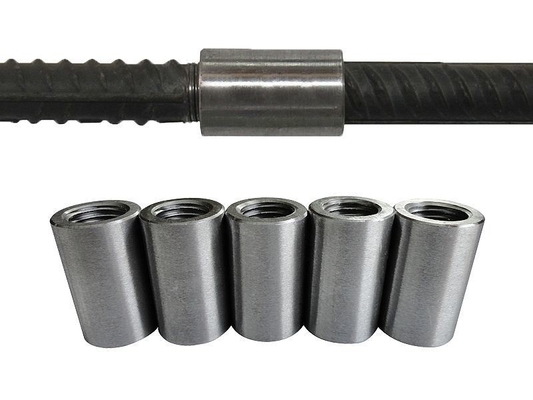

    Steel Reinforced Coupler for Rebar Connection is designed to produce a full strength mechanical joint between reinforcing bars, replacing the need for lap splicing.



    Features



    1. Wide working range: adaptable for Φ12mm-Φ50mm same diameter, different diameter,
    bending, new and old, advance covered up rebar of GB 1499, BS 4449, ASTM A615 or ASTM A706 standard.


    2. High strength: stronger than the reinforcement bar and guarantees bar break under tensile stress(tensile strength of connection point =1.1 times of connected bar). It can satisfy the requirements stipulated in the Chinese standard JGJ107-2003, JG171-2005.

    3. High efficiency: upset forging and threading one joint only needs no more than one minute, and handy operation and quick link.

    4. Environmental protection and economy profit: no environment pollution, can work all day, not affected by weather, economize energy source and bar material.



    Specification



    1. Material: Aisi 1045 High quality carbon steel.



    2. Use: to splice rebar dia 12--50mm.



    3. High strength, low cost, simple operation.



    Specification Outer Diameter

    Inner Diameter

    +0.25mm

    Length

    +2mm

    Thread Pitch (mm) Thread Angle
    D14 21 12.55 38 M14.8x2.5P 75°
    D16 24 14.50 43 M16.8x2.5P 75°
    D18 26 16.35 48 M18.6x2.5P 75°
    D20 29 18.45 53 M20.6x2.5P 75°
    D22 33 20.35 58 M22.6x2.5P 75°
    D25 37 23.15 63 M26.0x3.0P 75°
    D28 41 25.95 68 M28.6x3.0P 75°
    D32 47 30.15 80 M32.8x3.0P 75°
    D36 54 33.85 83 M36.7x3.5P 75°
    D40 59 37.55 88 M40.4x3.5P 75°

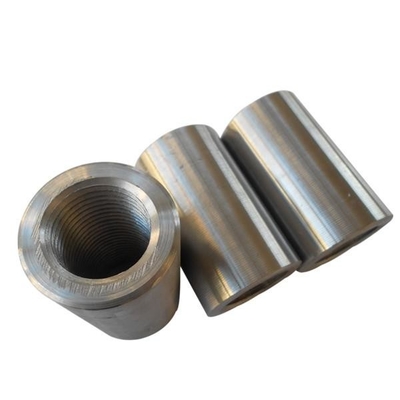

    Thread Rebar Splice Coupling Steel Reinforced Thread Bar Coupler for Rebar Connection

    Our Advantages



    Good quality control in production process, ISO9001:2008, SGS, BV approved.
    Excellent quality and Competitive price, OEM is available.
    Available in an extensive range of stock or custom size.
    The whole process from material to finished products can be traced.
    Our factory is close to the Ningbo port.

    Thread Rebar Splice Coupling Steel Reinforced Thread Bar Coupler for Rebar Connection



    Why Choose Us

    High tensile strength and the strength reach Grade II
    Working rang : Φ16mm-Φ40mm
    Strong intensity connector, stable and reliable; no specific requirements on the weld ability of the rebar;
    No flammable gases, not affected by rainy or cold weather;
    Relieve congestion of the connecting point, facilitated concrete pouring;
    No professional and experienced worker needed, able to connect changed steel bar of different diameters;
    Save 80% of connector steel consumption.

    Packing & Delivery

    Packing Details: Rebar coupler will be packed in gunny bag, then packed in wooden case, or package customize.

    Delivery Details : within 7-25 days after receiving the payment.
